Thinking About Navien Tankless Water Heater Installation in Lake Forest? Start Here
Lake Forest guide to Navien tankless installs—whether a half-inch gas line will do, how recirculation works without a return pipe, and when to repipe.
Lake Forest housing spans five decades, so whether a Navien can run on the existing gas branch is something we check house by house rather than assume.
Below, Repipe OC lays out how we plan a Navien tankless water heater installation in Lake Forest—from choosing between A2 and S2 to checking the gas line and deciding whether your plumbing should be replaced at the same time. We are licensed under CSLB #1087885 (C-36).
Local factors in Lake Forest
Lake Forest gets its water from El Toro Water District, and like most of Orange County it is hard enough that scale builds inside a tankless heat exchanger over time. Homes in Foothill Ranch, Sunset Ridge, Sun and Sail, Baker Ranch, Portola Hills were built across different decades, so gas branch sizes, heater locations, and pipe materials vary from street to street.
On every Lake Forest estimate we measure the gas run, mark the vent termination and condensate drain, and look at the supply piping before naming a Navien model.
Who a Navien is a good fit for
A Navien tends to suit Lake Forest households that run out of hot water with a tank, want the garage floor back, and are willing to schedule periodic descaling. It is a strong match where the farthest bathroom is a long way from the heater, because some Navien models can recirculate hot water without a separate return pipe.
It is a weaker match where there is no practical vent route, no place to drain condensate, or a gas supply that would need major work. We tell you which camp your house is in during the first visit.
Old pipes and a new condensing heater
Debris from aging galvanized lines can collect at the heater's inlet filter. Copper with a history of pinhole leaks keeps failing no matter what heater it feeds. Polybutylene fittings are a known weak point regardless of age. None of these is the heater's fault, but all of them show up as service calls after a heater swap.

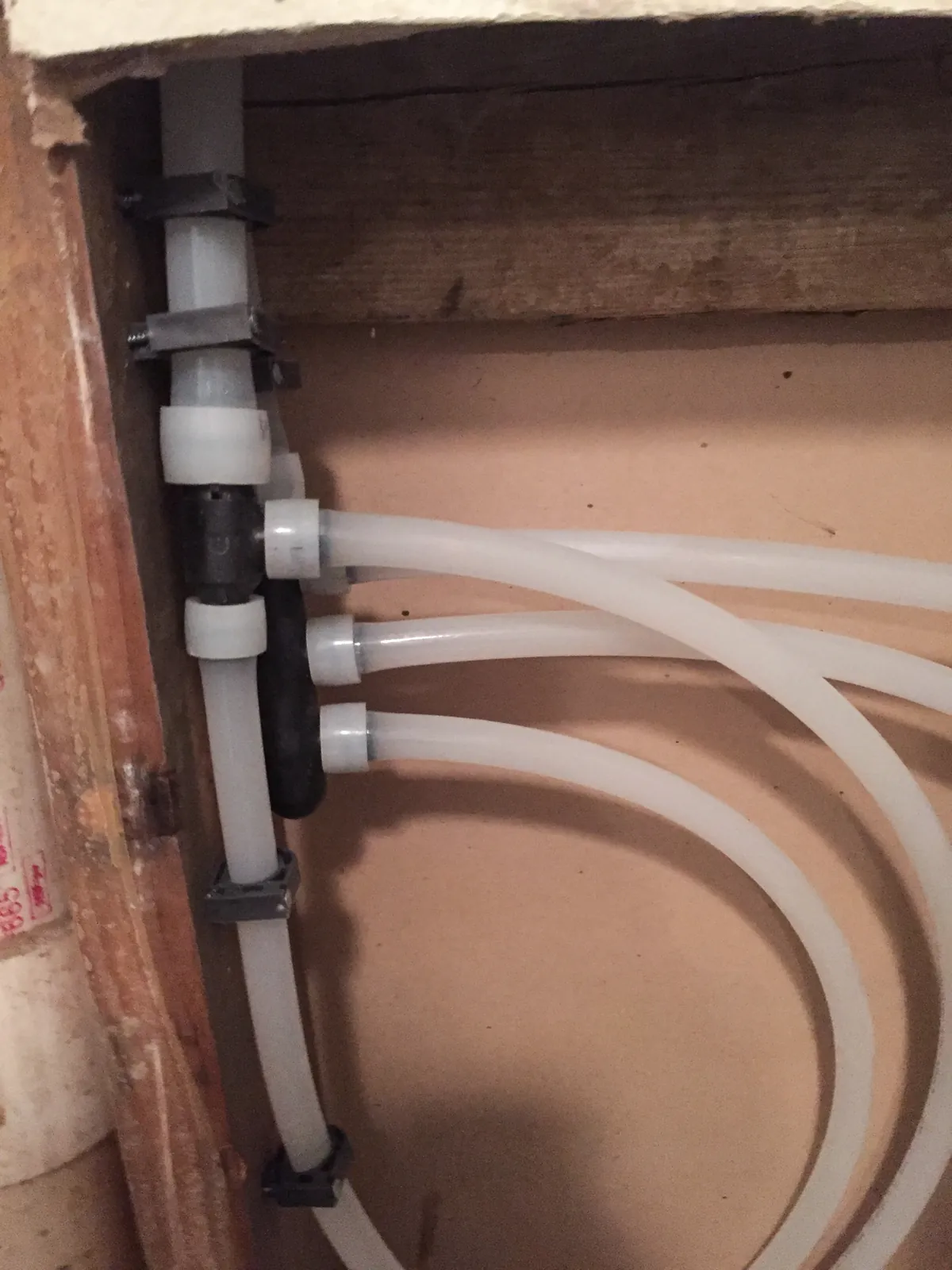

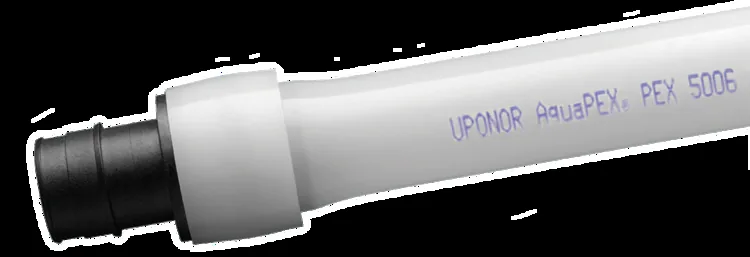

We look at the visible piping during the estimate, photograph what we find, and price the Navien alone and with a whole-house PEX-A repipe so you can compare.
Checking gas supply before the old tank comes out
A tank heater draws a modest, steady amount of gas. A tankless unit asks for a lot at once, and it asks at the same moment your furnace or cooktop might be running. When supply falls short, the heater lowers its output or shuts down with an error code.
Our gas check covers pipe size, total run length from the meter, the other appliances on the branch, and pressure under load after startup. If upsizing is needed, it is listed in the written scope before any work begins.
Navien notes from Lake Forest jobs
Sun and Sail and Sunset Ridge homes built in the 1970s and 80s often have the smallest gas branches we see, and a half-inch line there may or may not meet the manual’s length limits. Foothill Ranch and Baker Ranch homes usually have more capacity. In Portola Hills, gas runs from the meter can be long, which we measure before recommending a model size.
The buffer tank, explained in plain terms
Many tankless owners notice a brief burst of cool water when a tap is turned off and back on quickly—often called a cold-water sandwich. Navien's A2 models include a small internal buffer tank intended to smooth that out, along with a pump for recirculation.
It is not a storage tank like the one you are replacing; it holds a small amount of water to steady the temperature. For homes with frequent short draws—hand washing, quick rinses—it is a feature worth weighing.
How install day goes
A straightforward replacement is usually a one-day job; new gas runs, longer vent routes, or a combined repipe add time. The sequence: protect floors, shut off gas and water, drain and remove the old tank, mount the Navien, connect gas, water, vent, condensate, and power, then purge air, fire the unit, and check temperature and gas pressure under load.
Before we leave, we walk you through the controller, show you the service valves, and explain what a future flush involves.
The four hookups on every Navien install
- Gas: sized for the unit at full fire, with a shutoff and sediment trap
- Vent: sealed plastic venting routed per the manual, with code-compliant terminations
- Condensate: a drain line, usually through a neutralizer because the water is acidic
- Power: a standard 120-volt outlet for controls, ignition, and freeze protection
Leave any of these to chance and you get nuisance shutdowns or a failed inspection. Each one is written into the scope and checked before we leave.
Recirculation options in plain language
| Setup | How it works | Best for |
|---|---|---|
| No recirculation | Water waits in the pipe until a tap opens | Heater close to bathrooms |
| A2 with crossover valve | Returns cooled water through the cold line | Existing homes with no return pipe |
| A2 with dedicated return | Separate pipe brings water back to the heater | Homes being repiped or built new |
Scheduling the pump to run during busy hours keeps energy use reasonable.
Questions Lake Forest homeowners ask us about Navien
A2 or S2? A2 if the farthest bathroom waits a long time for hot water; S2 if the heater is close.
Does it need electricity? Yes, a standard 120-volt outlet.
How often does it need service? Descaling on the manual's interval, adjusted for your water.
Should I repipe at the same time? If you have pinholes, galvanized, or polybutylene, it is worth pricing both.
Next step for Lake Forest homeowners
Want to know whether your Lake Forest home is ready for a Navien? Request a free quote at (949) 524-2362 or [email protected] and we will check gas, venting, and piping on one visit. Repipe OC, 23821 Hillhurst Drive, Laguna Niguel, CA 92677 · CSLB #1087885 C-36.
